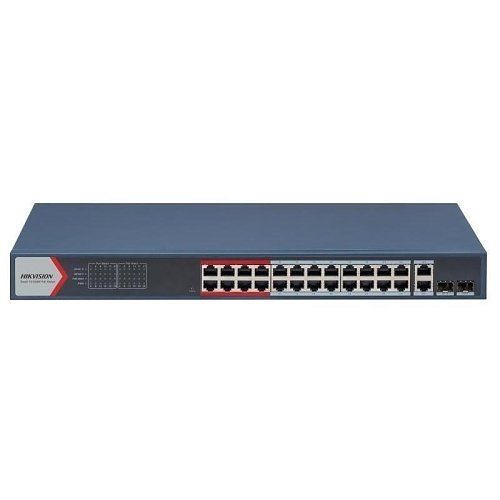

Hikvision DS-3E1326P-EI/M Smart PoE Switch

Hikvision DS-3E1326P-EI/M Smart PoE Switch delivers high-capacity power and connectivity for extensive IP surveillance and networking requirements.

This smart managed 26-port switch includes 24 Fast Ethernet PoE ports plus 2 Gigabit uplink ports. Large Kenyan facilities select it for dependable, high-density camera deployments. Shopping malls, universities, hospitals, hotels, warehouses, and industrial complexes rely on its robust performance. It powers numerous IP cameras efficiently. Extend mode extends coverage over longer distances. Intelligent management features simplify administration. Users experience reliable, low-maintenance operation. Security professionals across Nairobi and Kenya choose this model for practical, large-scale smart PoE infrastructure.

Why Hikvision DS-3E1326P-EI/M Smart PoE Switch Offers Outstanding Value

Large-scale networks demand substantial power reserves and basic intelligent controls. This switch provides 24 PoE ports with full IEEE 802.3af/at compliance. It supplies a powerful 400 W total PoE budget. Each port delivers up to 30 W power output. Extend mode achieves transmission distances up to 300 meters. Cable detection identifies faults instantly. PoE watchdog automatically reboots unresponsive cameras. VLAN support and port isolation enhance network security. Fanless design operates silently. The rugged metal housing withstands continuous operation. Wide temperature range adapts to Kenyan environmental conditions.

Hikvision DS-3E1326P-EI/M Smart PoE Switch suits demanding applications. Retail complexes power cameras across multiple zones and floors. Educational institutions secure expansive campuses. Hospitals monitor wards, entrances, and parking areas. The switch manages multiple HD video streams effectively. Remote management through Hik-Partner Pro provides convenient oversight. Real-time topology views and instant alarm notifications maintain network control.

Detailed Use Cases and Compatibility

Hikvision DS-3E1326P-EI/M Smart PoE Switch performs excellently in large-scale surveillance systems. Connect 24 IP cameras directly. Single-cable PoE reduces wiring complexity and cost. Extend mode supports distant outdoor or perimeter installations. Industrial sites secure vast premises reliably. The switch complies with IEEE 802.3af/at standards. It powers diverse PoE devices such as IP intercoms, wireless access points, and PTZ cameras. It integrates seamlessly with Hikvision cameras and ONVIF-compliant third-party brands. Pair with premium displays from our monitor collection. Monitor numerous feeds in clear detail. Establish professional control centers using our desktop computers.

Generate reports efficiently. Print essential documents through our printer collection. Security teams track port status at a glance. Bright LED indicators show power, link, and PoE status. Issue resolution occurs quickly. STP/RSTP prevents network loops for maximum stability.

Technical Specifications

• Ports: 24 × 10/100 Mbps PoE RJ45, 2 × 10/100/1000 Mbps RJ45 uplinks
• PoE Standard: IEEE 802.3af/at
• Max. PoE per Port: 30 W
• Total PoE Budget: 400 W
• Transmission Distance: Up to 300 m in extend mode (Ports 1-24)
• Switching Capacity: 8.8 Gbps
• Packet Forwarding Rate: 6.55 Mpps
• MAC Address Table: 8 K
• Internal Cache: 4 Mbits
• Power Supply: 100-240 VAC, 50/60 Hz
• Max. Power Consumption: 450 W
• Idle Power Consumption: 15 W
• Surge Protection: 6 kV for PoE ports
• Dimensions: 440 × 44 × 288 mm (1U rack-mountable)
• Operating Temperature: -10 °C to 40 °C
• Operating Humidity: 5% to 95% (non-condensing)
• Housing: Metal, fanless design
• Management Features: PoE watchdog, VLAN, port isolation, cable detection, loop prevention (STP/RSTP)
• Weight: ≈ 4.0 kg

These specifications guarantee high-capacity and dependable performance. Features enable effortless network expansion.

Warranty and Support You Can Trust

Aiconic Computers supplies authentic Hikvision products. Hikvision DS-3E1326P-EI/M Smart PoE Switch includes manufacturer warranty coverage. Local support in Kenya ensures prompt response. Professional installation guidance and configuration assistance come standard. Extended service plans provide additional assurance. Our expert team supports every step. Customers benefit from reliable after-sales service. Quality builds enduring trust.

Discover more from trusted sources:

• Hikvision Official Networking Overview
• IEEE 802.3 PoE Standards
• PoE Technology Explained

Deploy a high-density PoE network. Order Hikvision DS-3E1326P-EI/M Smart PoE Switch for rapid delivery across Kenya.
