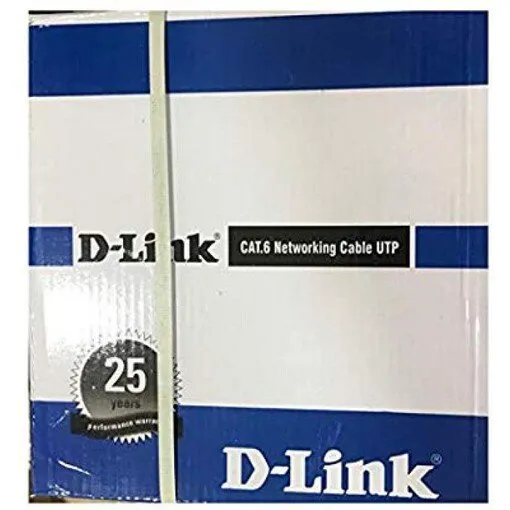

D-Link Cat 6 Cable Copper Indoor

D-Link Cat 6 Cable Copper Indoor offers premium pure copper networking for reliable indoor installations. This high-quality 305-meter cable supports full Gigabit Ethernet performance. It ensures superior signal integrity and future-proof connectivity. Professionals prefer it for demanding structured cabling projects.

Trust Aiconic Computers for authentic networking solutions. Explore our collection of laptops to pair with your wired network setup.

Detailed Use Cases for D-Link Cat 6 Cable Copper Indoor

Office buildings require consistent high-speed connections. Install this cable in dropped ceilings or raised floors. Employees transfer large files quickly. Video conferencing runs smoothly without buffering.

Corporate headquarters deploy it for backbone networks. Departments share resources efficiently. Servers connect reliably to workstations. Data centers use it for short patch runs and horizontal cabling.

Hospitals wire patient rooms and administrative areas. Medical imaging systems transmit files rapidly. Staff access electronic records instantly. The pure copper design minimizes signal loss.

Universities install it across lecture halls and labs. Students connect personal devices securely. Research teams run bandwidth-intensive simulations. The cable supports dense port concentrations.

Smart homes benefit from professional-grade wiring. Home offices handle remote work seamlessly. Entertainment systems stream 4K content flawlessly. IoT devices maintain stable links.

Installers value the flexibility and durability. The PVC jacket routes easily through conduits. Pull the cable smoothly during termination. Sequential markings simplify length management.

Combine with managed switches for VLAN segmentation. Integrate with POS systems in retail environments. Add tablets for mobile access points.

Backward compatibility includes Cat 5e and Cat 5 networks. Upgrade existing infrastructure without replacing endpoints. It exceeds standard requirements for most applications.

Technical Specifications

Cable Construction

Category: Cat 6 Unshielded Twisted Pair (UTP) Conductor Material: 100% Pure Bare Copper Conductor Gauge: 23 AWG Number of Pairs: 4 twisted pairs Insulation: High-Density Polyethylene (HDPE) on each conductor Separator: Cross-web spline for enhanced pair separation Rip Cord: Yes, for easy jacket stripping

Performance Characteristics

Frequency Range: Up to 250 MHz Maximum Data Rate: 1 Gbps (1000Base-T) over 100 meters; supports 10 Gbps short distances Compliance: Exceeds TIA/EIA-568-C.2 Category 6 standards Key Parameters:

• Return Loss: ≥20.1 dB @ 100 MHz
• NEXT: ≥39.3 dB @ 100 MHz
• PSNEXT: ≥37.1 dB @ 100 MHz
• ACR-F: ≥23.3 dB @ 100 MHz
• Attenuation: ≤22.0 dB/100m @ 100 MHz

Physical and Environmental Properties

Outer Jacket: Flame-retardant PVC (CM rated), typically grey Jacket Thickness: Optimized for flexibility and durability Cable Diameter: Approximately 6.1–6.5 mm Bend Radius: 4× diameter during installation, 8× in service Operating Temperature: -20°C to 60°C Installation Temperature: 0°C to 50°C Length per Box: 305 meters (1000 feet) Packaging: Pull-box with sequential footage/meters printed Weight: Approximately 13–15 kg per box

Additional Features

PoE Support: Compatible with IEEE 802.3af/at/bt (PoE++) Connector Compatibility: Standard RJ45 (T568A or T568B configuration) Flame Rating: CM (Communications) for general indoor use Low Smoke: Non-LSZH variant (check specific batch)

Pure copper conductors provide lower DC resistance. They support longer PoE runs effectively. The cable maintains performance in high-interference environments.

Why Choose Aiconic Computers for D-Link Cat 6 Cable Copper Indoor

Aiconic Computers delivers genuine D-Link products. We guarantee authenticity with manufacturer warranties. This cable includes performance warranty coverage from the manufacturer.

Our team offers expert technical support. We assist with certification testing advice. Installation queries receive detailed responses. Service ensures fast turnaround.

Post-sale assistance includes troubleshooting guidance. We help optimize network performance. Visit our main site at Aiconic Computers for more tools and resources.

Customer trust remains our priority. We provide transparent product information. Bulk purchases benefit from special rates.

Review official Category 6 specifications at TIA Online. Understand pure copper advantages via Belden Resources. Explore cabling best practices on Fluke Networks.

Superior Indoor Networking Performance

D-Link Cat 6 Cable Copper Indoor combines reliability with exceptional quality. It handles current and emerging bandwidth needs. The pure copper construction ensures longevity.

Invest in this cable for professional-grade networks. It delivers consistent Gigabit speeds indoors. Order now to strengthen your connectivity infrastructure.
