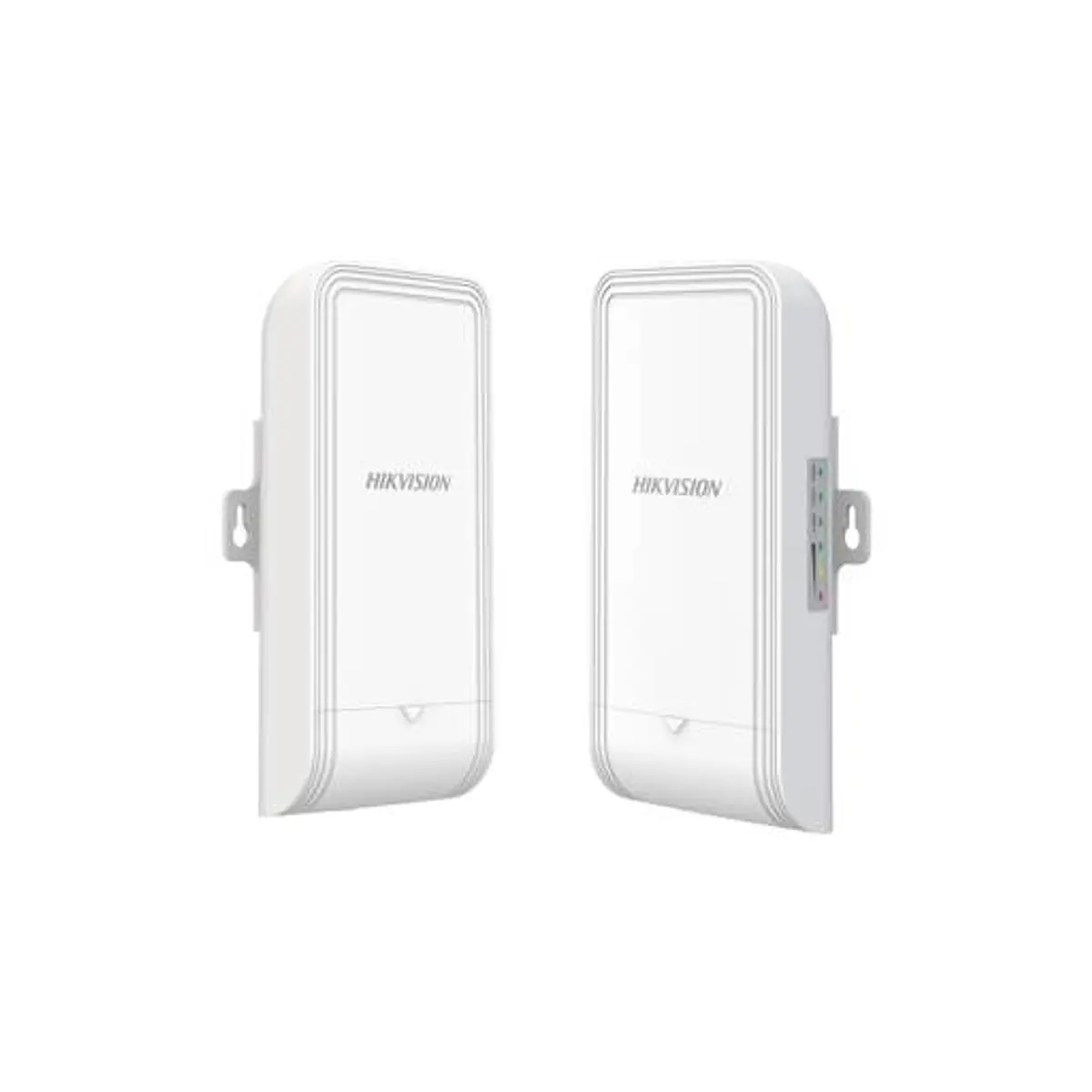

Hikvision DS-3WF3000-EI-5AC/P(O-STD) 5GHz 867Mbps 3KM Wireless Bridge Kit

Hikvision DS-3WF3000-EI-5AC/P(O-STD) 5GHz 867Mbps 3KM Wireless Bridge Kit establishes stable long-range wireless links for outdoor applications. This kit includes two units for point-to-point transmission. It delivers high-speed data over distances up to 3 km. Sites in Nairobi and Kenya overcome cabling challenges. Security teams transmit HD video reliably. Installers deploy networks quickly. The bridge supports demanding video surveillance effectively.

The device uses 802.11ac technology on 5 GHz band. It achieves up to 867 Mbps air interface rate. Built-in MIMO antenna focuses the signal. Plug-and-play pairing simplifies setup. PoE support powers devices conveniently. Visualized management tools aid monitoring.

Use Cases and Compatibility

This wireless bridge kit fits outdoor point-to-point needs. In remote surveillance, connect cameras across open areas. Industrial sites link buildings without fiber. Rural deployments extend networks to distant points. Transportation monitors assets over distance.

The kit supports PTP mode up to 3 km. Throughput reaches 90 Mbps at 0.5-1 km, 40 Mbps at 3 km in tests. Pair AP and CPE units. Connect IP cameras or NVRs via RJ45 ports. Use with Hikvision video systems for seamless integration. Support third-party devices via standard protocols.

Power via 48V PoE or 12-24V DC. Output PoE from CPE for cameras. Mount on poles or walls. Operate in harsh weather conditions. Align using signal LEDs. Manage via web interface, iVMS-4200, or HCP. Apply in video security, wireless coverage, and backbone links.

For reliable wireless gear in Kenya, visit Aiconic Computers. Explore monitors for control setups.

Technical Specifications

Wireless Parameters

• Wireless Standard: IEEE 802.11/a/n/ac
• Max. Transmission Rate of Air Interface: ≤ 867 Mbps
• Working Frequency Band: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5825 MHz
• Antenna Gain: 8 dBi
• Antenna Type: Built-in 2 × 2 MIMO
• Antenna Beamwidth: Horizontal 50°, Vertical 50°
• Transmitting Power: 22 dBm @11ac 80MHz MCS0 (varies by regulations)
• Receiving Sensitivity: -84 ±2 dBm @AC80 MCS0

Throughput (PTP Mode)

• 90 Mbps at 0.5 km (AC80)
• 90 Mbps at 1 km (AC80)
• 40 Mbps at 3 km (AC80)

Interfaces and Power

• Network Interface: 2 × 10/100 Mbps RJ45 ports
• PoE: AP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3af PoE OUT
• PoE Power Budget: 10 W
• PoE Distance: 100 m
• Power Supply: 48V PoE / 12~24V DC

General

• Dimensions (per unit): 90.8 mm × 187.87 mm × 57.87 mm
• Net Weight (per unit): 0.26 kg
• Working Temperature: -30°C to 60°C (typical)
• Working Humidity: 5% to 95% (non-condensing)
• Ingress Protection: Suitable for outdoor use
• Features: IFM, IPM, DFS, TPC, Channel Width 20/40/80 MHz, Auto/Manual Channel, WPA2-PSK, Hidden SSID

The kit packs two bridges, PoE supplies, and mounting accessories. It supports NTP, SADP, HTTPS. Upgrade via web or software.

Discover desktop computers at Aiconic Computers for management.

Reliable Performance and Support

Aiconic Computers supplies genuine Hikvision wireless products to Kenyan clients. The Hikvision DS-3WF3000-EI-5AC/P(O-STD) 5GHz 867Mbps 3KM Wireless Bridge Kit includes a manufacturer warranty against defects. Our Nairobi team offers expert support. Receive help with mounting, alignment, pairing, and configuration. Access firmware updates promptly. Trust our expertise for long-range wireless deployments.
