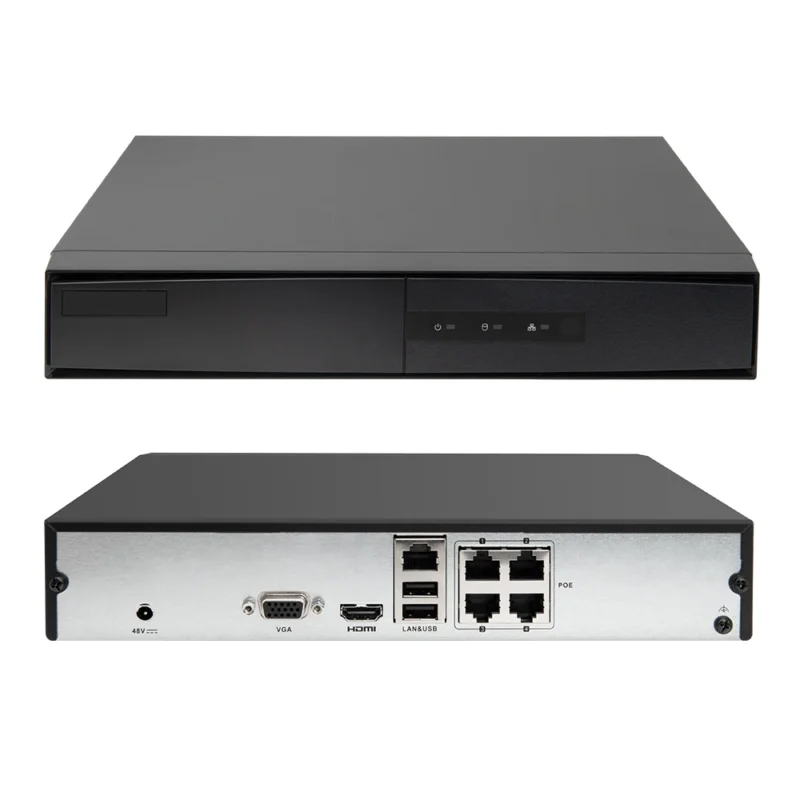

Hikvision DS-7104NI-Q1/4P/M 4-Channel NVR

Hikvision DS-7104NI-Q1/4P/M 4-Channel NVR delivers reliable IP surveillance with built-in PoE ports and advanced compression. This compact mini 1U device suits small installations needing easy setup, high-resolution recording, and convenient remote access.

Hikvision DS-7104NI-Q1/4P/M 4-Channel NVR Use Cases

The Hikvision DS-7104NI-Q1/4P/M 4-Channel NVR fits small-scale applications perfectly. Homeowners use it for monitoring entrances, driveways, and gardens. Small shops deploy it to cover sales areas, counters, and stock rooms. Offices install it for reception zones, hallways, and exteriors. Cafes apply it to dining spaces and entry points.

Four channels provide essential IP camera support. Users secure key locations efficiently. Small businesses achieve professional surveillance affordably.

Built-in PoE ports simplify installation. Connect cameras directly without separate power supplies. This reduces cabling and setup time.

Hik-Connect enables mobile viewing. Users check feeds from anywhere instantly.

Hikvision DS-7104NI-Q1/4P/M 4-Channel NVR Compatibility

The Hikvision DS-7104NI-Q1/4P/M 4-Channel NVR supports Hikvision IP cameras natively. It works with third-party cameras via ONVIF protocol.

Cameras reach up to 6 MP resolution. Users capture detailed footage clearly.

Four PoE ports power and connect cameras directly. Each follows IEEE 802.3af/at standards.

Remote access functions through Hik-Connect app. View live and playback on iOS or Android devices.

Plug-and-play auto-detects connected cameras. Setup completes in minutes.

Hikvision DS-7104NI-Q1/4P/M 4-Channel NVR Key Advantages

H.265+ compression reduces storage needs greatly. Users record longer periods on single drives. Bandwidth usage drops significantly.

Line crossing and intrusion detection trigger alerts. Users respond to events promptly.

Smart search highlights selected areas in playback. Review time shortens considerably.

Simultaneous HDMI and VGA outputs connect multiple monitors. Control rooms display feeds flexibly.

One SATA port supports large-capacity HDDs. Extended archiving becomes possible.

Technical Specifications

Video and Audio

• IP Video Input: 4-ch, up to 6 MP resolution
• Video Compression: H.265+/H.265/H.264+/H.264
• Incoming Bandwidth: 40 Mbps
• Outgoing Bandwidth: 60 Mbps
• HDMI/VGA Output: 1-ch each, up to 1920 × 1080p/60Hz
• Decoding Capability: 4-ch@1080p (30 fps)
• Synchronous Playback: 4-ch
• Stream Type: Video, Video & Audio

Network

• Network Interface: 1 × RJ45 10/100 Mbps (LAN)
• PoE Interface: 4 × RJ45 10/100 Mbps, IEEE 802.3af/at
• Remote Connections: Up to 16 users
• Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™

Storage

• SATA Interface: 1 × SATA
• Capacity: Up to 6 TB per HDD

Interface

• USB Interface: 2 × USB 2.0 (rear panel)
• Video Output Mode: HDMI/VGA simultaneous

General

• Power Supply: 48 VDC, 1 A
• PoE Power: ≤ 36 W total
• Consumption: ≤ 10 W (without HDD)
• Working Temperature: -10 °C to +55 °C
• Dimensions (W × D × H): 265 × 223 × 48 mm
• Weight: ≤ 1 kg (without HDD)
