Hikvision DS-K2210 Elevator Master Controller

Hikvision DS-K2210 Elevator Master Controller delivers robust floor access management for secure building operations. This device restricts elevator access based on credentials. It fits high-rise residential towers, corporate offices, hotels, and mixed-use complexes in Nairobi and across Kenya. Property owners enhance security. Residents gain convenient yet controlled movement. Facility managers achieve centralized oversight.

The controller manages permissions across extensive floors. It connects to distributed units for expanded coverage. Authentication options provide flexibility. Integration with intercoms and alarms adds layers of protection. Offline capabilities ensure reliability during network issues.

Use Cases and Compatibility

This controller suits demanding multi-level environments. In residential apartments, assign floor access to residents only. Visitors reach lobby or designated areas. Corporate buildings limit staff to work floors. Guests access meeting levels on schedule. Hotels tie room keys to specific floors for privacy.

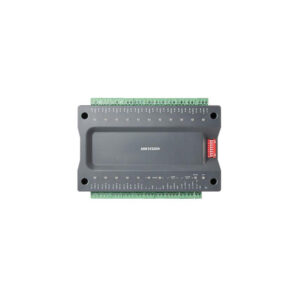

It supports up to 128 floors through distributed controllers. Connect up to three groups. Each group handles up to eight DS-K2M0016A units. This configuration scales effectively. Pair with Wiegand or RS-485 card readers. Support credentials like cards and fingerprints.

Multiple modes include card-only, fingerprint-only, card plus fingerprint, card plus password, employee ID plus password, super password, and duress code. Link to video intercom devices. Connect panic buttons for emergencies. Add fire alarm inputs for safety overrides. Include maintenance buttons for service access.

Operate over TCP/IP networks. Use RS-485 for local connections. Manage via iVMS-4200 software or web interface. Support remote configuration. Work in new builds or retrofit projects. Integrate with third-party systems for broader compatibility.

For quality security solutions in Kenya, visit Aiconic Computers. Browse monitors to pair with control stations.

Technical Specifications

System Parameters

• Processor: 32-bit high-performance processor
• Card Storage: 20,000 normal cards
• Event Storage: 50,000 events

Interfaces

• Communication: TCP/IP, RS-485, Wiegand
• Card Readers: Up to 2 Wiegand or 2 RS-485 readers
• Inputs: 1 panic button, 1 fire alarm button, 1 maintenance button, 2 case inputs
• Outputs: 5 relay outputs (including door switch and alarm relays)
• Internal Clock: Supported with RTC

General

• Power Supply: 12 VDC ±15%
• Working Temperature: -40°F to 158°F (-40°C to 70°C)
• Working Humidity: 0% to 90% (non-condensing)
• Dimensions: 167 mm (L) × 105 mm (W) × 30 mm (H)
• Installation: Guide rail mounting

Key Features

• Controls permissions for up to 128 floors
• Supports watchdog and tamper-proof functions
• Offers multiple schedule templates with weekly plans and holiday groups
• Enables event input and output linkage
• Allows offline operation with data retention
• Provides indicators for power, running status, serial communication, relay state, and network connection

The device saves data during power loss. It reports events to central systems. Floor statuses include disable, controlled, and free modes. Linkages trigger alarms effectively.

Explore desktop computers for dedicated management setups at Aiconic Computers.

Reliable Performance and Support

Aiconic Computers supplies trusted Hikvision solutions to Kenyan clients. The Hikvision DS-K2210 Elevator Master Controller includes a manufacturer warranty covering defects. Our Nairobi team offers expert support. Receive help with installation, wiring, configuration, and troubleshooting. Access firmware updates promptly. Count on responsive service to maintain peak performance. Benefit from our expertise in access control deployments.

For additional insights, review Hikvision’s official access control overview here, elevator control solutions here, and security best practices here.
