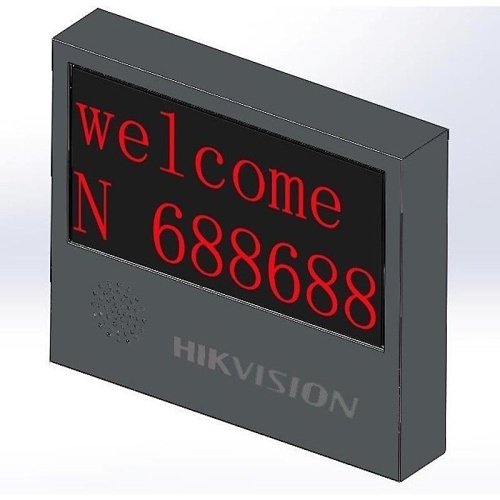

Hikvision DS-TVL224-4-5Y(2 rows) Entrance/Exit LED Screen

Hikvision DS-TVL224-4-5Y(2 rows) Entrance/Exit LED Screen delivers clear visual guidance for parking management systems. This outdoor double-row LED display shows essential information reliably. Moreover, it enhances driver experience at entrances and exits in Kenyan facilities.

Use Cases and Compatibility

First, mount this screen at parking lot entrances, exits, gated communities, malls, hospitals, and office compounds. Additionally, it displays available spaces, license plates, welcome messages, time, charges, or weather updates. Therefore, drivers receive instant updates without confusion.

Furthermore, integrate it with Hikvision parking controllers like DS-TME series or ANPR cameras. Consequently, content updates automatically based on system data. Moreover, RS485 and RJ45 ports ensure flexible connectivity for online or offline modes.

In addition, the built-in speaker provides audio reminders or announcements. As a result, it supports voice prompts for better accessibility. Besides, control software allows remote content management from a central station.

For example, Nairobi shopping centers use it to guide visitors to open spots quickly. Similarly, residential estates inform residents of parking status. Overall, it reduces congestion and improves traffic flow efficiently.

Installation and Performance Scenarios

Installation uses hoop mounting on the back for secure placement on poles or walls. Thus, setup suits various outdoor locations. Moreover, the IP65-rated housing withstands rain, dust, and harsh sunlight.

Furthermore, P4.75 pixel pitch offers sharp visibility from distances. Likewise, 120° wide viewing angles ensure readability for approaching vehicles. Therefore, performance remains consistent in bright daylight or at night.

Additionally, low power consumption supports long-term use. Consequently, operational costs stay minimal. In summary, this screen thrives in Kenya’s variable weather conditions.

Technical Specifications

Display Screen

• Pixel Pitch: P4.75 mm
• Resolution: 64 × 32 (for 2 rows variant)
• Display Content: GB2312 character set, 16×16 lattice Chinese characters, standard English/numeric/special characters
• Screen Type: LED
• Display Colors: Red, Green, Yellow (double color)
• Number of Modules: Configured for 2 rows
• Viewing Angle: 120° (H) / 120° (V)
• Display Modes: Instant, left shift, up forward, etc.
• Color Temperature: 3000K to 6000K

General Parameters

• LED Brightness: 1200 cd/m²
• LED Angle: 110°
• Frame Material: Iron frame with spraying plastic (dark armored glass for display area)
• Installation Method: Hoop on the back
• Speaker Specification: 4 Ω 10W
• Protection Grade: IP65 (water and dust resistant)
• Working Voltage: AC 220V ±10%, 50Hz
• Power Consumption: Max 50 W, Average 30 W
• Display Size: Approx. 304 mm (W) × 304 mm (H)
• Dimensions: 364 mm (W) × 484 mm (H) × 60 mm (D)
• Communication Methods: RJ45 (Ethernet, up to 120 m), RS485 (up to 1200 m, 57600 bps)

Reliable Support and Warranty

Aiconic Computers provides quality Hikvision parking accessories with assurance. Therefore, the Hikvision DS-TVL224-4-5Y(2 rows) Entrance/Exit LED Screen includes the manufacturer’s standard warranty. Moreover, our Nairobi team offers expert mounting guidance and ongoing technical support. Thus, maintain clear visibility and system reliability effortlessly.

Check related items on our website. For example, explore desktop computers for control software stations. Similarly, browse monitors for operator views. Furthermore, discover gaming for other computing requirements.

Explore LED display applications in parking from Hikvision official resources. Learn about IP65 protection standards via IEEE resources. Understand outdoor LED technology on Wikipedia LED display page.

This durable screen ensures effective communication for smooth parking operations in Kenya.
