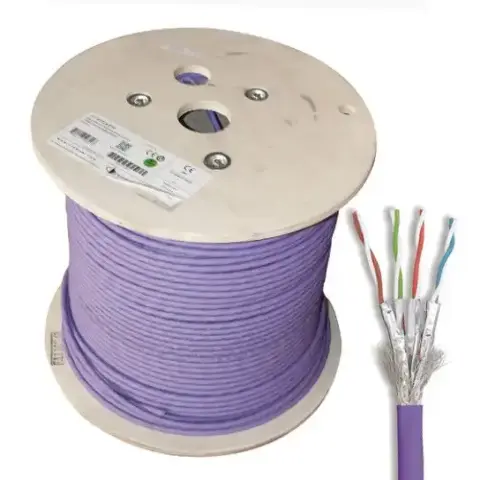

Siemon Cat 6a Cable

Siemon Cat 6a Cable provides exceptional performance for advanced structured cabling systems. This premium 305-meter cable supports 10 Gigabit Ethernet reliably. It exceeds Category 6A standards with significant headroom. Professionals select it for high-bandwidth enterprise and data center applications.

Trust Aiconic Computers for genuine Siemon solutions. Explore our range of desktop computers to support your high-speed network deployments.

Detailed Use Cases for Siemon Cat 6a Cable

Data centers require future-proof cabling. Install this cable for server farms and storage arrays. It handles 10GBASE-T links over full 100-meter channels. Network operators achieve low bit error rates consistently.

Enterprise backbones connect core switches across floors. High-throughput applications run without bottlenecks. Virtualization and cloud services perform optimally. The cable supports dense patching environments.

Financial institutions wire trading floors and server rooms. Real-time data feeds transmit instantaneously. Compliance requirements demand reliable performance. Siemon Cat 6a Cable delivers superior alien crosstalk suppression.

Healthcare networks link imaging equipment and electronic records. Large DICOM files transfer quickly. Telemedicine sessions maintain high quality. The design minimizes interference in sensitive areas.

Universities deploy it in research labs and lecture halls. Bandwidth-intensive simulations execute smoothly. Students stream high-resolution content. The cable accommodates growing device counts.

Smart buildings integrate AV over IP and building automation. 4K/8K video distribution works flawlessly. Control systems respond instantly. The cable future-proofs infrastructure investments.

Installers benefit from optimized pair geometry. The center spline maintains consistent performance during pulls. Reelex packaging simplifies handling. Sequential length markings prevent excess waste.

Combine with Siemon Z-MAX or TERA connectivity for certified channels. Integrate with storage for high-speed backups. Pair with projectors in advanced presentation systems.

Backward compatibility supports Cat 6 and Cat 5e applications. It exceeds lower category specifications significantly.

Use indoors with appropriate jacket types. Select CMR or LSZH variants based on requirements.

Technical Specifications

Cable Construction

Category: Augmented Category 6 (Cat 6A) UTP Conductor Material: 100% Pure Bare Copper Conductor Gauge: 23 AWG solid Number of Pairs: 4 twisted pairs Insulation: Polyethylene (PE) or fluoropolymer (FEP in some variants) Separator: Internal cross or spline for pair separation and alien crosstalk reduction Rip Cord: Longitudinal under jacket

Performance Characteristics

Frequency Range: Up to 500 MHz Maximum Data Rate: 10 Gbps (10GBASE-T) over 100 meters Compliance: Exceeds ANSI/TIA-568.2-D Category 6A, ISO/IEC 11801-1 Class EA, IEC 61156-5 Key Parameters (typical for System 6A):

• Return Loss: High margin
• NEXT: Exceptional performance
• PSANEXT: Superior alien crosstalk protection
• ACR-F: Outstanding
• Attenuation: Low across full frequency range
• Delay Skew: ≤45 ns/100m (meets 10G requirements)

Physical and Environmental Properties

Outer Jacket: PVC (CM/CMR), LSZH, or outdoor variants available Jacket Nominal O.D.: Approximately 7.0–7.5 mm (variant dependent) Bend Radius: 4× diameter (installation), 8× (operating) Operating Temperature: -20°C to 60°C Installation Temperature: 0°C to 50°C Length per Reel: 305 meters (1000 feet) Reelex or box Packaging: Reelex II or pull-box with sequential markings Weight: Approximately 15–18 kg per reel Flame Rating: CM, CMR, CMP, or LSZH options

Additional Features

PoE Compatibility: Supports IEEE 802.3bt Type 3/4 (PoE++ up to 90W+) Connector Compatibility: Standard RJ45 or Siemon proprietary terminations Alien Crosstalk: Optimized design for high-density installations Performance Assurance: Independently verified by third parties in many configurations

Pure copper conductors minimize DC resistance. They enable reliable high-power PoE delivery. The advanced separator reduces alien crosstalk effectively.

Why Choose Aiconic Computers for Siemon Cat 6a Cable

Aiconic Computers supplies authentic Siemon cabling. We provide manufacturer-backed quality assurances. This cable includes performance warranty coverage from the manufacturer.

Our team offers expert technical guidance. We assist with channel certification and best practices. Compatibility inquiries receive detailed responses. Service ensures efficient procurement.

Support continues after purchase. We help optimize high-speed networks. Visit our homepage at Aiconic Computers for additional resources.

We focus on reliability and customer satisfaction. Bulk orders receive competitive pricing.

Review Category 6A standards at TIA Online. Explore alien crosstalk mitigation via Belden Resources. Check 10GBASE-T guidelines on Cisco Networking.

Advanced 10 Gigabit Cabling Solution

Siemon Cat 6a Cable combines superior engineering with proven reliability. It supports 10 Gbps over standard distances. The premium construction guarantees long-term performance.

Choose this cable for high-bandwidth networks. It delivers exceptional speed and stability. Order now to future-proof your infrastructure.
