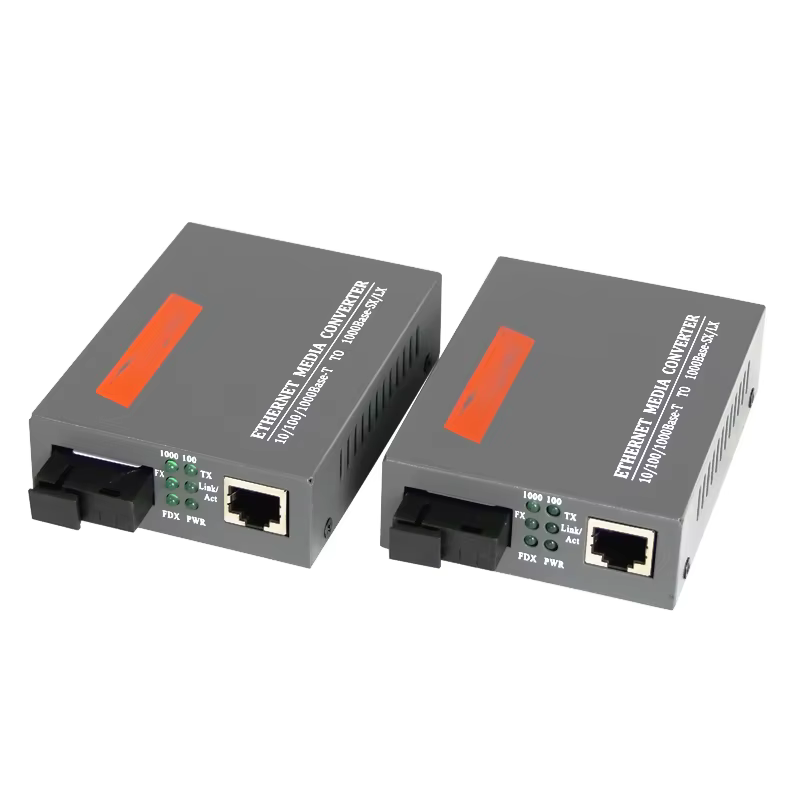

HTB-GS-03 AB Single Fiber Media Converter

The HTB-GS-03 AB Single Fiber Media Converter bridges copper and fiber networks over 20km distances. This gigabit device supports 10/100/1000Base-TX to 1000Base-FX conversion using single-mode single fiber. It enables high-speed, bidirectional transmission with WDM technology for efficient long-haul links.

Detailed Use Cases and Compatibility

Enterprise Campus Connections

IT professionals connect data centers to remote buildings using this converter. It extends gigabit Ethernet across fiber spans without performance drops. Teams handle large file transfers and video conferences smoothly.

The A/B pairing ensures full-duplex communication in point-to-point setups. It integrates with VLANs for segmented traffic control. Scalable solutions suit expanding corporate infrastructures.

ISP and Broadband Extensions

Providers deploy it for FTTH backhaul to customer premises. The 20km reach covers suburban deployments effectively. Subscribers access streaming services with low latency.

It pairs with ONTs for hybrid fiber-copper last miles. Single-fiber design cuts installation costs by half. Ideal for rural broadband initiatives demanding reliability.

Industrial Network Deployments

Factories link PLCs to control rooms over EMI-resistant fiber. The robust build operates in dusty environments without failures. Operators monitor sensors in real time.

Compatible with SCADA systems for secure data flows. The converter supports PoE passthrough for powered devices. Enhances automation in manufacturing plants.

For industrial POS needs, browse Aiconic Computers’ POS category.

Surveillance and Security Systems

Security teams extend IP camera feeds to NVRs over long cables. It maintains 1000Mbps for multi-stream HD video. Alerts trigger instantly across the network.

Works with ONVIF-compliant devices for unified management. The low BER ensures clear footage without artifacts. Suits perimeter monitoring in large facilities.

Device and Network Compatibility

This converter links to Cat5e/6 UTP up to 100m on RJ45 ports. It mates with SC/APC connectors for minimal reflections. Complies with IEEE 802.3ab/z standards for broad interoperability.

Supports switches from Cisco, Huawei, and Ubiquiti seamlessly. Auto-MDI/MDIX eliminates cable type concerns. Functions in 19-inch rack chassis for dense installations.

Explore Ethernet over fiber details on IEEE’s standards portal.

Technical Specifications

Interface and Transmission

• Ports: 1x RJ45 10/100/1000Base-TX, 1x SC simplex 1000Base-FX
• Wavelength: A: 1310nm TX/1550nm RX; B: 1550nm TX/1310nm RX
• Distance: Up to 20km on 9/125μm single-mode fiber
• Data Rate: 10/100/1000Mbps auto-negotiation, full/half duplex

Optical and Electrical Performance

• TX Power: -14 to -6 dBm
• RX Sensitivity: -32 dBm
• Bit Error Rate: <10^-12
• Power Input: DC 5V/2A (AC 100-240V adapter included)

Physical and Environmental

• Dimensions: 94 x 71 x 27 mm
• Weight: 0.3 kg per unit
• Operating Temperature: 0°C to 70°C
• Humidity: 5% to 95% non-condensing
• Indicators: 6 LEDs (Power, FDX/Col, FX Link/Act, TX Link/Act, FX 1000, TX 100)

Compliance and Features

• Standards: IEEE 802.3, 802.3u, 802.3z/ab, 802.3x flow control
• MAC Table: 4K entries
• Buffer: 256K
• MTU: Up to 9036 bytes
• Certifications: CE, RoHS

Refer to ITU’s optical transmission resources.

Trust-Building with Warranty and Support

Aiconic Computers commits to flawless networking gear with comprehensive coverage. The HTB-GS-03 AB Single Fiber Media Converter features a 12-month warranty for defects and malfunctions. Our engineers validate each pair before shipping.

Includes free adapters and diagnostic cables with every order. Nairobi depot guarantees 24-hour turnaround on repairs. Firmware flashes maintain compatibility with new protocols.

Over 15,000 installations trust our expertise across Kenya. Our 24/7 support line resolves queries instantly. Select us for uninterrupted connectivity you can depend on.

For complementary storage, visit Aiconic Computers’ storage category.

Empower Your Gigabit Networks

This converter boosts throughput in bandwidth-hungry applications. Its compact size mounts easily on walls or desks. Power-efficient operation reduces utility expenses.

Link to monitors for centralized management views. Aiconic Computers’ monitors category displays real-time stats. Optimize performance effortlessly.

LSZH jacket options enhance fire safety in buildings. Modular design allows quick field swaps. Adaptability meets diverse deployment scenarios.

Gigabit extension guides available at Cisco’s media converter hub.

Enterprises value the jumbo frame support for efficiency. LED diagnostics pinpoint issues rapidly. Resilience powers mission-critical operations.

The surge-protected ports guard against electrical threats. Easy A/B identification simplifies installations. Superiority ensures future-ready links.

Integrate with projectors for network training. Aiconic Computers’ projectors category projects demos clearly. Build team proficiency swiftly.

Advanced flow control prevents packet loss. Scalable pairs expand coverage linearly. Precision engineering delivers consistent results.
