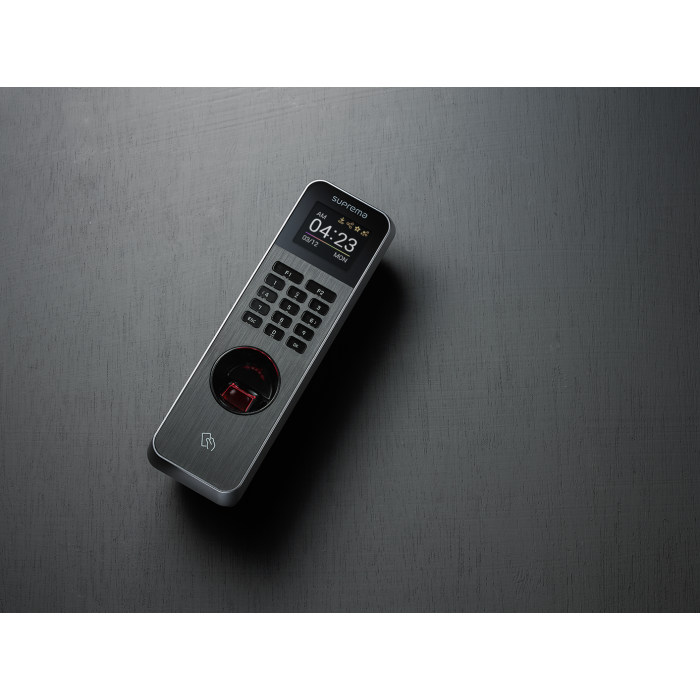

Suprema BioLite N2 Outdoor IP Fingerprint Terminal

Suprema BioLite N2 Outdoor IP Fingerprint Terminal delivers exceptional biometric access control for challenging outdoor environments. This device integrates advanced fingerprint technology with multi-class RFID and mobile support in a rugged housing. It suits perimeter and entry point security perfectly. Organizations achieve fast, reliable authentication in tough conditions.

This terminal provides comprehensive features for access and time attendance. It ensures high accuracy and security. Users benefit from quick responses and durable performance.

Versatile Use Cases and Compatibility

Ideal Installation Scenarios

This terminal excels at outdoor gates, perimeter doors, parking entrances, and factory perimeters. Its IP67-rated rugged build withstands rain, dust, and extreme weather. Install it on metal frames, concrete walls, or exposed areas confidently.

It performs reliably in offices, schools, hospitals, warehouses, and industrial sites across Kenya. Use fingerprint for high-security staff access. Add RFID or mobile for visitors and contractors. The device supports standalone or networked operations effectively.

Businesses secure main gates against unauthorized entry. Hospitals protect loading areas outdoors. Schools control campus boundaries. Factories monitor shift changes at external points.

Broad Compatibility Options

The terminal supports dual-frequency RFID for extensive credential coverage. It reads 125kHz EM cards and 13.56MHz smart cards seamlessly. Formats include MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3, FeliCa, and NFC. Mobile access works via NFC and 2.4GHz BLE from smartphones.

Interfaces feature Ethernet, RS-485, Wiegand, TTL inputs, and relay output. It connects to Suprema controllers or third-party systems. PoE compatibility simplifies remote installations.

For biometric standards information, visit this NIST biometric guidelines resource. Explore access control protocols at this SIA OSDP overview. Learn outdoor security best practices from this CISA physical security guide.

Discover related solutions at Aiconic Computers main site. Browse desktop computers and monitors for management stations. Check full desktop computers range.

Technical Specifications

Core Hardware Details

Model Variants: BLN2-ODB (EM + MIFARE/DESFire), others available

Fingerprint

• Sensor Type: Optical (OP6 high-precision)
• Resolution: 500 dpi
• Image Size: 272 x 320 pixels
• Template Extractor / Matcher: Suprema algorithm
• Standards: SUPREMA / ISO 19794-2 / ANSI 378
• Certification: MINEX compliant
• Live Fingerprint Detection: Supported

Credential Support

RF Options

• Frequencies: 125kHz EM & 13.56MHz HF
• Supported Cards: EM, MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3, FeliCa, NFC
• Mobile: NFC, 2.4GHz BLE
• Read Range: MIFARE/DESFire up to 50 mm, EM/FeliCa up to 30 mm

Capacity

• Max. User (1:1): 10,000
• Max. User (1:N): 10,000
• Max. Template (1:1 / 1:N): 20,000 (two per finger)
• Max. Text Log: 1,000,000

Processing and Interface

CPU: 1.2 GHz Memory: 8GB Flash + 64MB RAM Display: 1.77” color TFT LCD (160 x 128 pixels) Sound: 16-bit Hi-Fi LED: Multi-color Interfaces

• Ethernet: 10/100 Mbps, auto MDI/MDI-X
• RS-485: 1ch (Host or Slave selectable)
• Wiegand: 1ch (Input or Output selectable)
• TTL Input: 2ch
• Relay: 1 (Max. 30 VDC, 2A)
• Tamper: Supported

Power and Environment

Power: DC 12V, Max. 0.5 A Operating Temperature: -20°C to 50°C Storage Temperature: -40°C to 70°C Operating Humidity: 0% to 80%, non-condensing Ingress Protection: IP67 (dust and waterproof) Dimensions (WxHxD): 58 x 190 x 44 mm (bottom) / 34 mm (top) Weight: Device 255 g, Bracket 57 g

Certifications: CE, FCC, KC, RoHS, REACH, WEEE

Reliable Support and Warranty

Aiconic Computers stands behind every Suprema BioLite N2 Outdoor IP Fingerprint Terminal with full manufacturer warranty coverage. Local technical support in Nairobi assists with installation, configuration, and troubleshooting. Our team offers prompt service for Kenyan clients. Purchase confidently from a trusted supplier dedicated to superior security solutions.

Explore more options in gaming peripherals. View printers category for business tools. Check POS systems.

This terminal features a powerful 1.2GHz CPU for ultra-fast matching and quick startup. Suprema’s latest algorithm ensures top accuracy even with worn or dirty fingers. Live detection prevents spoofing attempts reliably.

IP67 protection guards against heavy rain, dust storms, and submersion. The rugged structure suits Kenya’s variable outdoor conditions. Wide temperature tolerance handles hot afternoons and cooler evenings.

Multi-RFID support eliminates multiple devices. Users present cards, tags, or phones conveniently. BLE enables mobile credentials for modern convenience.

Installation proves straightforward. Mount securely on surfaces. Connect power and interfaces as required. Enroll users via the built-in LCD and keypad options in variants.

Businesses integrate it into existing networks easily. Ethernet and RS-485 support centralized management. Relay controls locks directly for standalone setups.

In high-traffic outdoor areas, rapid authentication reduces delays. High log capacity tracks events comprehensively. Tamper detection alerts on interference.

The compact yet visible design fits various architectures. The color LCD provides clear feedback to users. Hi-Fi sound adds audible confirmation.

Overall, this terminal combines robust protection, advanced biometrics, and flexible credentials. It meets demanding outdoor access needs for Kenyan organizations effectively.
