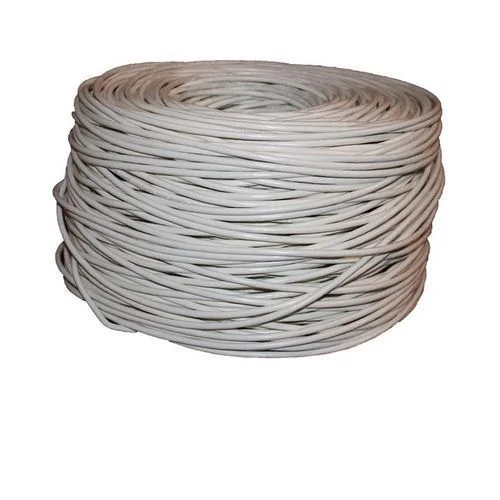

Easenet Indoor Semi Copper Cat 6

Easenet Indoor Semi Copper Cat 6 supplies dependable cabling for standard indoor networking projects. This 305-meter cable supports reliable Gigabit Ethernet connections. It offers good value for everyday installations. Users select it for budget-conscious structured wiring.

Choose quality networking from Aiconic Computers. View our selection of desktop computers to complete your setup.

Detailed Use Cases for Easenet Indoor Semi Copper Cat 6

Home networks require stable wired links. Install this cable behind walls or in conduits. Residents connect smart TVs and computers smoothly. Streaming and browsing perform without interruptions.

Small offices organize cabling efficiently. Run lines to multiple employee desks. Staff share documents and access cloud services quickly. The cable handles typical office traffic well.

Schools equip computer rooms with reliable connections. Students log in to educational platforms consistently. Teachers upload materials and grade assignments online. The design suits multi-user environments.

Retail stores wire checkout counters and back offices. POS terminals communicate with inventory systems. Transactions complete rapidly during peak times. Network stability supports daily operations.

Cafes and restaurants extend Wi-Fi coverage. Connect access points to main routers. Customers enjoy seamless internet on devices. The cable maintains signal quality indoors.

Installers find the flexible jacket easy to work with. Pull through tight spaces during deployment. Meter markings guide accurate cutting. The pull-box prevents kinks and tangles.

Pair with switches and routers for complete LANs. Combine with printers for shared printing. Add storage devices for centralized data.

Backward compatibility fits older equipment. Connect Cat 5e or Cat 5 devices without problems. It serves as an affordable upgrade option.

Use only in dry indoor locations. Avoid exposure to moisture or direct sunlight. The PVC jacket suits controlled environments.

Technical Specifications

Cable Construction

Category: Cat 6 Unshielded Twisted Pair (UTP) Conductor Material: Semi-Copper (Copper Clad Aluminum – CCA blend) Conductor Gauge: 23 AWG Number of Pairs: 4 twisted pairs Insulation: Polyethylene (PE) on individual conductors Separator: Cross spline to reduce crosstalk Rip Cord: Included for jacket removal

Performance Characteristics

Frequency Range: Up to 250 MHz Maximum Data Rate: 1 Gbps (1000Base-T) over 100 meters Supported Standards: IEEE 802.3ab 1000Base-T, 802.3u 100Base-TX, 802.3 10Base-T Compliance: Meets basic TIA/EIA-568-C.2 Cat 6 channel requirements for CCA cable Crosstalk Reduction: Twisted pairs and spline minimize NEXT and PSNEXT Attenuation: Acceptable for full-length runs in semi-copper design

Physical and Environmental Properties

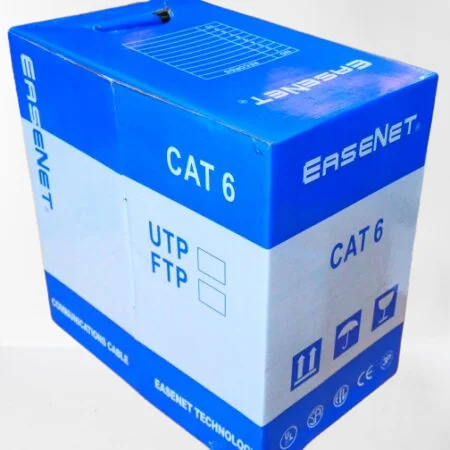

Outer Jacket: Flexible PVC, typically grey or blue Jacket Rating: CM for general indoor communications use Cable Diameter: Approximately 6.0–6.5 mm Bend Radius: 4× diameter (installation), 8× (operating) Operating Temperature: -20°C to 60°C Installation Temperature: 0°C to 50°C Length per Reel: 305 meters (1000 feet) Packaging: Pull-out dispenser box with sequential meter markings Weight: Approximately 11–13 kg per box

Additional Features

Connector Compatibility: Standard RJ45 modular plugs (T568A/B) PoE Support: Suitable for basic PoE applications (limited distance due to CCA) Flame Retardancy: Meets CM rating for indoor safety

Semi-copper conductors balance cost and conductivity. They suit runs up to 100 meters effectively. The lightweight design eases handling during installation.

Why Choose Aiconic Computers for Easenet Indoor Semi Copper Cat 6

Aiconic Computers provides trusted cabling solutions. We stock reliable products with standard manufacturer coverage. This cable includes performance warranty coverage from the manufacturer.

Our team offers practical installation support. We recommend best routing practices. Compatibility checks help avoid issues. Service delivers prompt resolutions.

Support continues after purchase. We guide on network maintenance. Visit our main site at Aiconic Computers for further assistance.

We emphasize quality and affordability. Bulk buyers receive attractive pricing options.

Explore Cat 6 basics on Wikipedia Category 6 cable. Compare conductor types at FS.com CCA vs Copper. Check cabling guidelines via TIA Online.

Cost-Effective Indoor Cabling Option

Easenet Indoor Semi Copper Cat 6 delivers solid Gigabit performance at accessible prices. It meets requirements for most indoor applications. The durable build supports reliable daily use.

Opt for this cable in value-driven projects. It provides consistent connectivity indoors. Order today to build efficient networks affordably.
