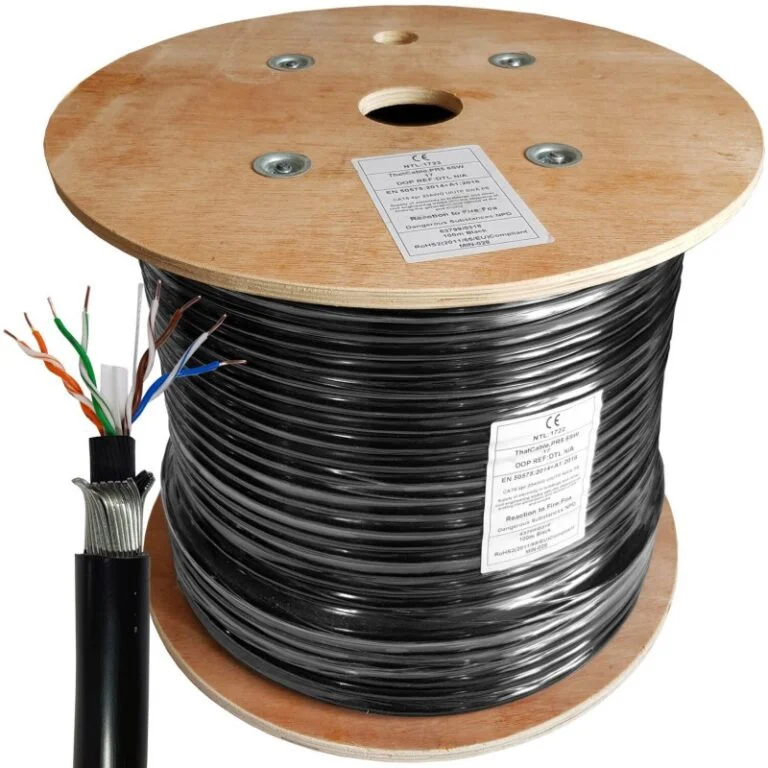

Easenet Outdoor Copper UTP Cat 6

Easenet Outdoor Copper UTP Cat 6 delivers premium pure copper cabling for robust external networking. This 305-meter cable supports full Gigabit Ethernet performance reliably. It withstands demanding weather conditions effectively. Professionals select it for high-quality outdoor structured installations.

Source dependable products from Aiconic Computers. Browse our desktop computers to integrate with your network infrastructure.

Detailed Use Cases for Easenet Outdoor Copper UTP Cat 6

Outdoor networking requires resilient solutions. Security systems connect IP cameras across large areas. Continuous video streaming transmits without quality loss. The UV-resistant jacket shields against prolonged sun exposure.

Business campuses link buildings with Gigabit backbones. Inter-office communication flows smoothly. VoIP and cloud applications perform consistently. Pure copper maintains signal strength over extended runs.

Educational facilities extend connectivity to outdoor facilities. Access points provide Wi-Fi in open spaces. Students and faculty access resources reliably. The cable supports high device density.

Agricultural sites wire remote equipment sheds. Automated systems receive real-time commands. Environmental sensors send data back instantly. Low resistance ensures reliable PoE delivery.

Event venues deploy temporary high-speed links. Live production setups stream content effectively. Audio-visual gear operates without interruptions. The pull-box design speeds up on-site installation.

Service providers extend broadband to remote subscribers. Last-mile connections deliver stable speeds. The weatherproof PE jacket protects against rain, wind, and temperature variations.

Pair with outdoor PoE switches for powered endpoints. Combine with projectors for external displays. Add storage for networked surveillance recording.

Backward compatibility accommodates legacy Cat 5e devices. Future-proof design allows short 10 Gigabit segments. It connects seamlessly to standard RJ45 ports.

Route through conduit for maximum protection. Avoid unprotected direct burial. The PE jacket endures harsh environmental exposure.

Technical Specifications

Cable Construction

Category: Cat 6 Unshielded Twisted Pair (UTP) Conductor Material: 100% Pure Bare Copper Conductor Gauge: 23 AWG Number of Pairs: 4 twisted pairs Insulation: High-Density Polyethylene (HDPE) Separator: Cross-web spline for pair separation Rip Cord: Included for easy stripping

Performance Characteristics

Frequency Range: Up to 250 MHz Maximum Data Rate: 1 Gbps (1000Base-T) over 100 meters; supports 10 Gbps over shorter distances Compliance: Exceeds TIA/EIA-568-C.2 Category 6 standards Key Parameters:

• Return Loss: ≥20.1 dB @ 100 MHz
• NEXT: ≥39.3 dB @ 100 MHz
• PSNEXT: ≥37.1 dB @ 100 MHz
• ACR-F: ≥23.3 dB @ 100 MHz
• Attenuation: ≤22.0 dB/100m @ 100 MHz

Physical and Environmental Properties

Outer Jacket: UV-stabilized Polyethylene (PE), typically black Jacket Rating: Weatherproof, UV-resistant, moisture-resistant Cable Diameter: Approximately 6.2–6.8 mm Bend Radius: 4× diameter (installation), 8× (operating) Operating Temperature: -40°C to 70°C Installation Temperature: -10°C to 60°C Length per Reel: 305 meters (1000 feet) Packaging: Pull-out dispenser box with sequential meter markings Weight: Approximately 14–16 kg per reel Flame Rating: CM or equivalent

Additional Features

PoE Compatibility: Supports IEEE 802.3af/at/bt (PoE++) with excellent power delivery Connector Compatibility: Standard RJ45 plugs (T568A/B wiring) DC Resistance: Low due to pure copper construction Core Type: Dry (non-gel-filled) for general outdoor use

Pure copper conductors deliver superior conductivity. They enable maximum PoE distances and minimal signal degradation. The cable excels in environments with electromagnetic interference.

Why Choose Aiconic Computers for Easenet Outdoor Copper UTP Cat 6

Aiconic Computers supplies authentic Easenet products. We provide manufacturer-backed quality guarantees. This cable includes performance warranty coverage from the manufacturer.

Our team offers expert technical guidance. We advise on proper outdoor routing and termination. Compatibility questions receive prompt answers. Service ensures timely delivery.

Support continues after purchase. We assist with network optimization and troubleshooting. Visit our homepage at Aiconic Computers for more resources.

We emphasize reliability and customer satisfaction. Bulk orders benefit from competitive pricing.

Review Category 6 standards at TIA Online. Compare pure copper advantages via Belden Resources. Explore outdoor cabling best practices on Cisco Networking.

High-Performance Outdoor Cabling Solution

Easenet Outdoor Copper UTP Cat 6 combines exceptional build quality with proven durability. It handles Gigabit demands in exposed locations. The pure copper design provides long-term stability.

Choose this cable for professional outdoor networks. It ensures consistent high-speed connectivity. Order today to build resilient infrastructure.
